2002 Mitsubishi Outlander DRIVE BELT DIAGRAM

Tiny
2WIL
  • MEMBER
  • 2002 MITSUBISHI OUTLANDER
  • 6 CYL
  • 4WD
  • AUTOMATIC
  • 178,000 MILES
DO YOU HAVE A BELT DIAGRAM I CAN LOOK AT
Thursday, April 10th, 2008 AT 11:50 AM

1 Reply

Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

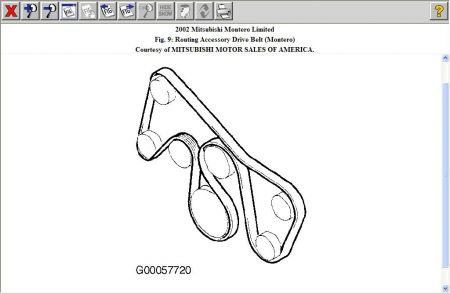

If its a 3.5Liter engine see below no pictures on the outlander-use below as a guide


https://www.2carpros.com/forum/automotive_pictures/12900_belt_1.jpg
