Belt routing

Tiny
DRAGON1161632
  • MEMBER
  • MERCEDES BENZ
I have a 97 benz e320 3.2L iand my serpentine belt broke I do my own work an I need a routing for my new belt
Wednesday, July 18th, 2007 AT 8:28 PM

1 Reply

Tiny
GFIMOTORCARS
  • MECHANIC
  • 673 POSTS

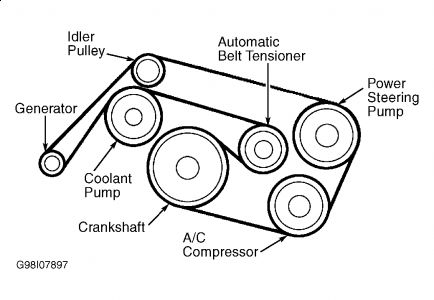

The following is the belt routing diagram for your vehicle.


https://www.2carpros.com/forum/automotive_pictures/294900_112_belt_routing_2.jpg
