2002 Kia Sportage timeing belt

Tiny
WILLIAM MCCORMICK
  • MEMBER
  • 2002 KIA SPORTAGE
  • 4 CYL
  • 4WD
  • AUTOMATIC
  • 125,000 MILES
Belt replacement and timing procedures
Friday, December 5th, 2008 AT 11:02 AM

1 Reply

Tiny
BLUELIGHTNIN6
  • MECHANIC
  • 16,542 POSTS
Hello
Thanks for the donation.

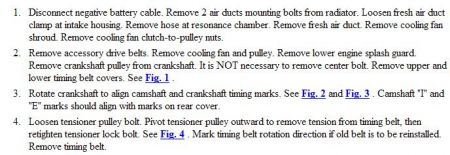

REMOVAL


https://www.2carpros.com/forum/automotive_pictures/261618_remove_1.jpg

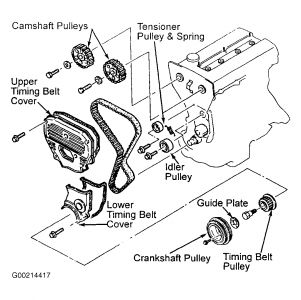

FIG 1


https://www.2carpros.com/forum/automotive_pictures/261618_Graphic1_1.jpg

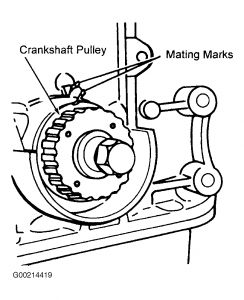

FIG 2


https://www.2carpros.com/forum/automotive_pictures/261618_2_1.jpg

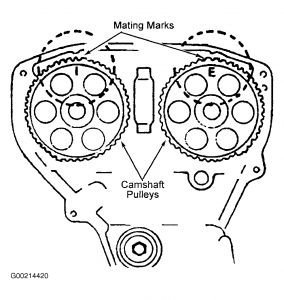

FIG 3


https://www.2carpros.com/forum/automotive_pictures/261618_Graphic3_1.jpg

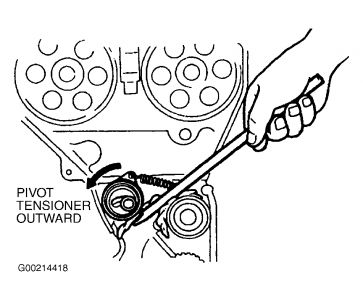

FIG4


https://www.2carpros.com/forum/automotive_pictures/261618_Graphic4_1.jpg

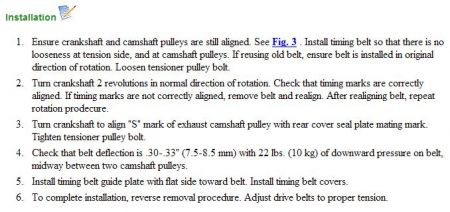

INSTALLATION


https://www.2carpros.com/forum/automotive_pictures/261618_install_1.jpg

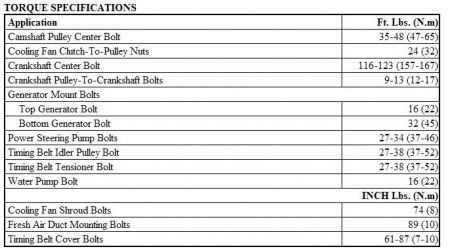

https://www.2carpros.com/forum/automotive_pictures/261618_specs_1.jpg
