Belt routing diagram

Tiny
RLKV011
  • MEMBER
  • 2005 HYUNDAI SONATA
Six cylinder two wheel drive automatic 58,000 miles.

Anyone know where I can find a serpentine belt routing diagram for my vehicle?
Saturday, January 19th, 2008 AT 12:25 PM

3 Replies

Tiny
BMRFIXIT
  • MECHANIC
  • 19,053 POSTS

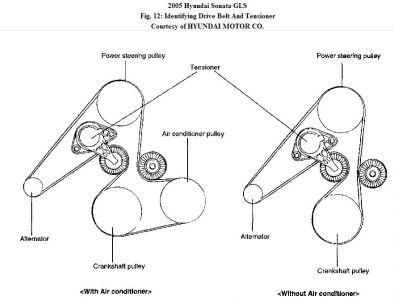

Let me know if that is what are you looking for.


https://www.2carpros.com/forum/automotive_pictures/99387_hyun_1.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+11
Saturday, January 19th, 2008 AT 1:14 PM
Tiny
JOSEPH STEVENS
  • MEMBER
  • 2 POSTS
I have a 2005 Hyundai Sonata. I have to replace the alternator belt. How do I do it? Do I have to get it back behind the serpentine belt? How would I do that?
Was this
answer
helpful?
Yes
No
+2
Tuesday, January 24th, 2017 AT 3:14 PM
Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS
What is engine size?
Was this
answer
helpful?
Yes
No
Saturday, January 28th, 2017 AT 10:46 AM
