1999 Ford Ranger DLC has no Battery vdc at pin 16

Tiny
WMCMULLAN
  • MEMBER
  • 1999 FORD RANGER
  • 6 CYL
  • 4WD
  • MANUAL
  • 134,000 MILES
Actron 9180 reader will not establish comm. No 12vdc at pin 16 of DLC. Battery vdc present at one side of fuse 5 in fuse panel. Other side of fuse 5(not Blown) does not have a wire connected in the fuse panel. Not broken off or hanging loose. Apparently never connected. Where does the DLC obtain power from?
Key on/off or engine running makes no difference.
SPONSORED LINKS
Wednesday, December 3rd, 2008 AT 1:06 PM

2 Replies

Tiny
DAVE H
  • MECHANIC
  • 13,383 POSTS
DLC obtains power from fuse 17 in fuse/relay box under left hand side of dash. Same fuse as cigarette lighter.
Was this
answer
helpful?
Yes
No
Wednesday, December 3rd, 2008 AT 1:20 PM
Tiny
MHPAUTOS
  • MECHANIC
  • 31,938 POSTS
HI there,

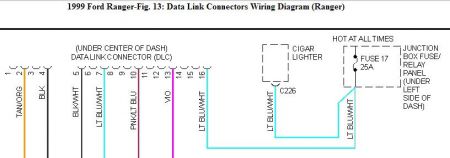

Just to add to what David H has posted, here is a view of the DLC wiring schematic showing the power supply.

Mark (mhpautos)


https://www.2carpros.com/forum/automotive_pictures/61395_Noname_23.jpg
