Diagram of serpentine belt needed?

Tiny
MONEYMOE
  • MEMBER
  • 2006 MERCEDES BENZ 230TE
  • 1.6L
  • 6 CYL
  • AUTOMATIC
  • 12,800 MILES
I need a diagram of a Mercedes C230 2006 serpentine diagram of the Sport edition.
Wednesday, April 5th, 2023 AT 9:45 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 43,351 POSTS

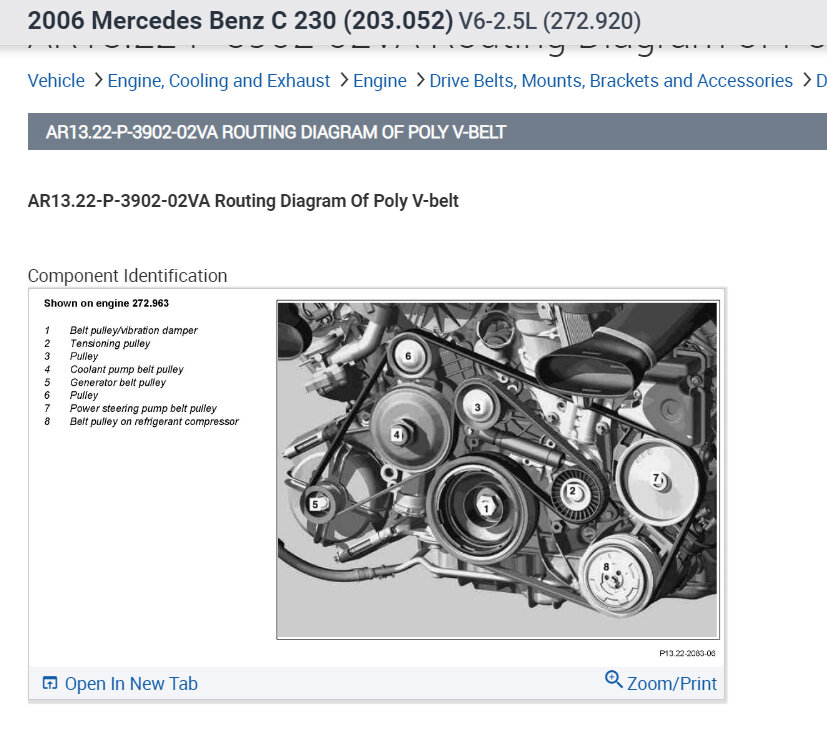

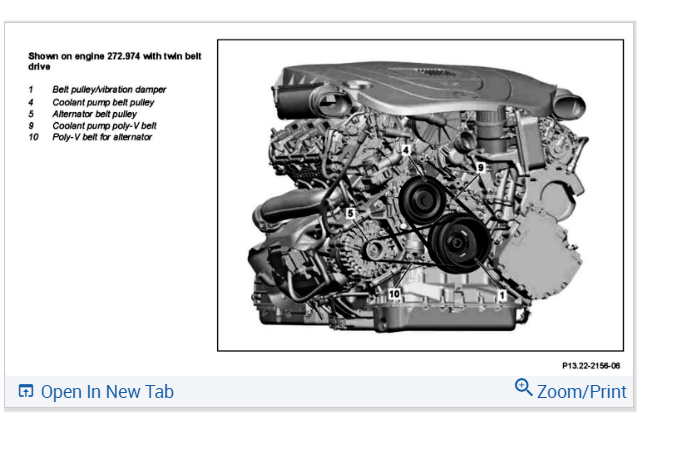

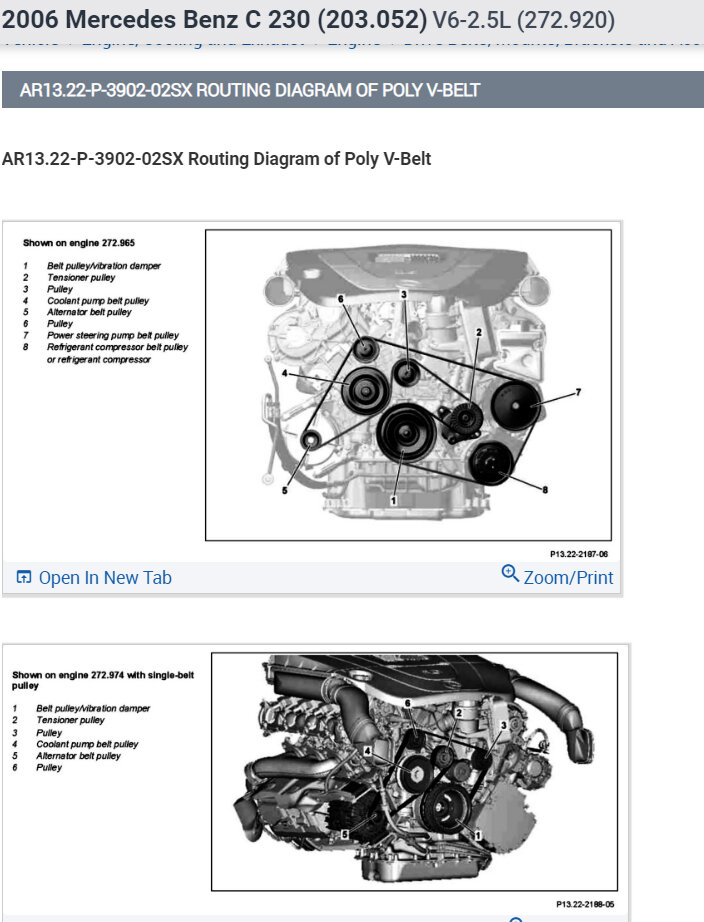

Sure, here are the serpentine belt routing diagrams so you can see how the installation is done. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
