1991 Chevy S-10 belt routing

Tiny
JAMESRICHMOND
  • MEMBER
  • 1991 CHEVROLET S-10
Other Category problem
1991 Chevy S-10 V6 Two Wheel Drive Automatic 110000 miles

need belt routing diagram with and without air condioning
Saturday, December 8th, 2007 AT 8:00 AM

1 Reply

Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS
Here ya go!

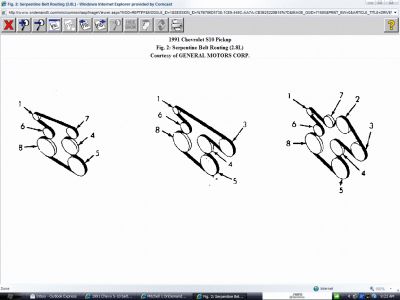

https://www.2carpros.com/forum/automotive_pictures/62217_belt1_1.jpg

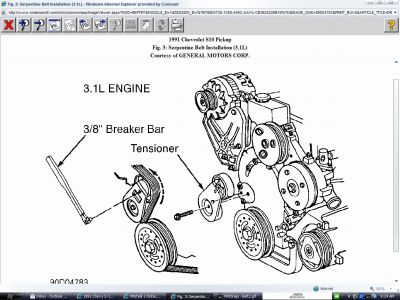

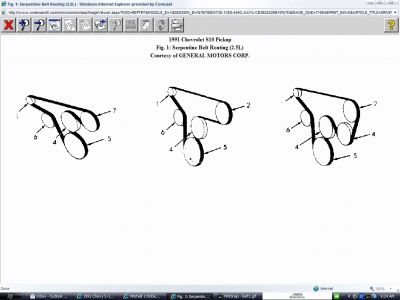

https://www.2carpros.com/forum/automotive_pictures/62217_belt2_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_belt3_1.jpg

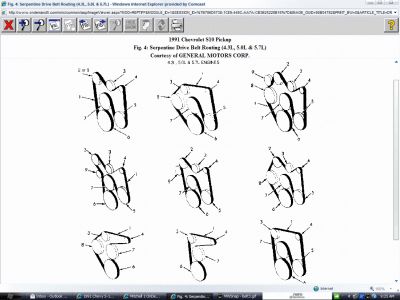

https://www.2carpros.com/forum/automotive_pictures/62217_belt4_1.jpg

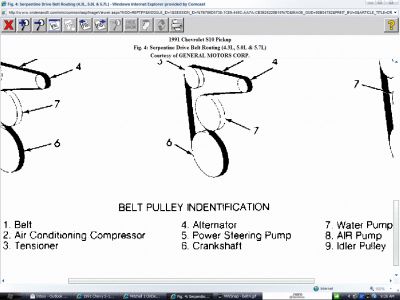

https://www.2carpros.com/forum/automotive_pictures/62217_ID_1.jpg
