1996 Geo Metro Replacing a heater core

Tiny
ACHILLESXI487
  • MEMBER
  • 1996 GEO METRO
Heater problem
1996 Geo Metro Front Wheel Drive Manual 155000 miles

I have been told to remove the dash in order to replace the heater core, but I am not sure what would happen if I mess with the air bags. The manual says to disarm them but it is really vague on where or how. How do I remove the dash without blowing the air bags, and then replace it so that they wont go off as soon as I reconnect the battery?
Do you
have the same problem?
Yes
No
Sunday, November 1st, 2009 AT 11:00 AM

1 Reply

Tiny
IMPALASS
  • EXPERT
Hello -

I will attach the info on the dash - air bag for you. Please be extremely careful when working with the airbags as even static can set them off. So be extremely careful even when you carry it.

Also many times you don't have to remove the dash airbag as the dash comes off with it connected after you unplug it. So look really close and again be careful.

I have given you what we have to remove both airbags to include the dash if you have to remove the dash one.

DO NOT turn the key on until all the connectors are plugged back in on those airbags. On many vehicles the system will do a self check and if a bag is not connected it will throw a fault and it can only be cleared by taking it to the dealer and putting it on their tester.....it runs the check and clears the light. So NO POWER on until all is back together.

I also gave you info on just the Metro not the Metro LSi.
HEATER CORE
Removal & Installation
Remove instrument panel. See INSTRUMENT PANEL. Drain coolant from cooling system. Disconnect all cables and ducts from heater case. Remove heater case from vehicle. Remove screws and clips from heater case. Separate heater case into halves (if necessary). Remove heater core from case. To install, reverse removal procedure.
INSTRUMENT PANEL
Removal
1. Disable air bag system. See AIR BAG RESTRAINT SYSTEM article in ACCESSORIES/SAFETY EQUIPMENT SECTION. Remove air bag module from steering wheel. Remove steering wheel nut and washer. Mark position of steering wheel on shaft, and remove steering wheel using puller. Remove 2 screws and lower steering column trim panel.
2. Remove combination switch from steering column. Remove left and right kick panels from center console. Remove left and right speaker grilles from instrument panel.
3. Remove left and right front speakers from instrument panel. Remove glove box. Remove heater control lever knobs. Remove 3 screws and instrument panel center trim bezel.
4. Remove 2 screws and heater control panel. Disconnect heater control panel illumination connector from center trim bezel. Remove shift boot (manual transaxle equipped). Remove 4 screws and center console. Remove ashtray. Remove 4 screws and center console trim bezel. Remove radio.
5. Remove 4 screws and instrument panel cluster trim bezel. Disconnect connectors from cluster trim bezel mounted switches (if equipped). To aid removal of instrument cluster, disconnect speedometer cable from transaxle. Remove 4 screws and pull instrument cluster away from instrument panel.
6. Disconnect speedometer cable and all wiring harness connectors from back of instrument cluster. Remove instrument cluster. Disconnect illumination connectors from ashtray and cigarette lighter. Remove cigarette lighter.
7. Remove 3 lower instrument panel screws (one screw is located below steering column and remaining screws are located below glove box). Remove 3 upper instrument panel screw covers and screws.
8. Remove screw attaching instrument panel to floor pan. Disconnect illumination controller connector. Remove screw attaching hood latch release lever to instrument panel, disconnect cable from lever and remove lever. Unwind 4 retainers attaching wiring harnesses to instrument panel. Remove instrument panel.
Installation
To install, reverse removal procedure. Tighten air bag module screws and steering wheel hub nut to specification. See TORQUE SPECIFICATIONS. Activate air bag system and ensure air bag system is functioning properly. See AIR BAG RESTRAINT SYSTEM article in ACCESSORIES/SAFETY EQUIPMENT SECTION.

DISABLING & ACTIVATING AIR BAG SYSTEM
WARNING: To avoid accidental air bag deployment and possible personal injury, be sure to wait at least 2 minutes, after disabling SIR system, before beginning work on system.
1. Straighten vehicle's front wheels and turn ignition switch to LOCK position. Remove key from ignition.
2. Locate air bag fuse box (near base of steering column) and remove AIR BAG IG fuse.
3. Remove steering wheel side cap. Disengage Connector Position Assurance (CPA) clip and disconnect driver-side inflator module.
4. Pull top of glove box outward while depressing stops. Allow glove box to fall toward passenger seat. Disengage CPA clip and disconnect Yellow connector for passenger-side inflator module.
5. To activate SIR system, turn ignition switch to LOCK position and remove key. Reverse steps 2 through 4 above. Turn ignition switch to RUN position and verify that AIR BAG warning light flashes 7 times and turns off. If AIR BAG warning light does not function properly, perform SIR DIAGNOSTIC SYSTEM CHECK under TESTING - DIAGNOSTIC.

DRIVER-SIDE INFLATOR MODULE
CAUTION: When carrying a live inflator module, always be sure to keep trim cover pointed away from your body. When placing a live inflator module on a work bench or other surface, be sure that trim cover is facing upward (away from surface).
Removal
1. Disable SIR system. See procedures under DISABLING & ACTIVATING AIR BAG SYSTEM . Straighten front wheels of vehicle and disconnect negative battery cable.
2. Remove steering wheel side trim cover and disconnect 2 horn wire connectors. Remove 2 Torx head retaining screws from driver-side inflator module and remove inflator module from vehicle.
Installation
1. To install, position driver-side inflator module onto steering wheel. Install 2 Torx head retaining screws and torque them to 89 INCH lbs. (10 N.m).
2. Reconnect 2 horn wire connectors. Reinstall steering wheel side cover. Reconnect negative battery cable and activate SIR system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
PASSENGER-SIDE INFLATOR MODULE
CAUTION: When carrying a live inflator module, always be sure to keep trim cover pointed away from your body. When placing a live inflator module on a work bench or other surface, be sure that trim cover is facing upward (away from surface).
Removal & Installation
Disable SIR system. See DISABLING & ACTIVATING AIR BAG SYSTEM. Remove 5 retaining screws from passenger-side inflator module, and remove module from vehicle.
Installation
1. To install, position passenger-side inflator module into vehicle upper dash pad. Install 5 retaining screws. Torque 2 upper side screws to 49 INCH lbs. (5.5 N.m) and 3 bottom center screws to 198 INCH lbs. (22.5 N.m). See Fig. 7

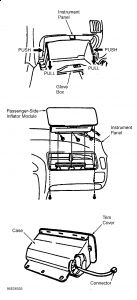

Fig. 7: Installing Passenger-Side Inflator Module
Courtesy of GENERAL MOTORS CORP.


http://www.2carpros.com/forum/automotive_pictures/248015_7_23.jpg



2. Reconnect the passenger-side inflator module connector and re-engage the CPA clip. Activate the SIR system. Refer to procedures in DISABLING & ACTIVATING AIR BAG SYSTEM .

SYSTEM OPERATION CHECK
If SIR system is functioning properly, AIR BAG warning light will flash 7 times when ignition switch is turned to ON position. If AIR BAG warning light does not function in this manner, SIR system must be diagnosed and repaired.
