1995 Honda Accord Wiring of Starter/ignition relay (Mitsuba

Tiny
MDBY2K
  • MEMBER
  • 1995 HONDA ACCORD
  • 4 CYL
  • FWD
  • AUTOMATIC
  • 100,000 MILES
Recently my 1995 Honda Accord would not start, I jump started it & left it to idle a bit, came back & smoke was coming form the hood. The starter relay & its connector had melted. I bought a new one (Mitsuba 2201) & I need to reconnect it but I do not know which wires (two red, one black & white wires)go to what terminals on the relay??? Are there any wiring diagrams or drawings


http://www.2carpros.com/forum/automotive_pictures/343770_Mitsuba_2201_Relay_2.jpg

SPONSORED LINKS
Monday, April 13th, 2009 AT 3:49 PM

3 Replies

Tiny
KHLOW2008
  • MECHANIC
  • 41,815 POSTS
Hi mdby2k,

Here are the schematics. Starter system does not utilise relays for starting except a disabling relay controlled by the security system.

Are you sure the damaged relay is for the starter?

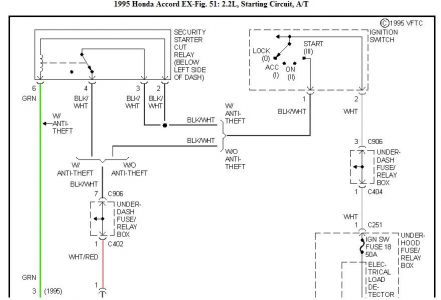

https://www.2carpros.com/forum/automotive_pictures/192750_StartCircuit95AccordAT01_1.jpg

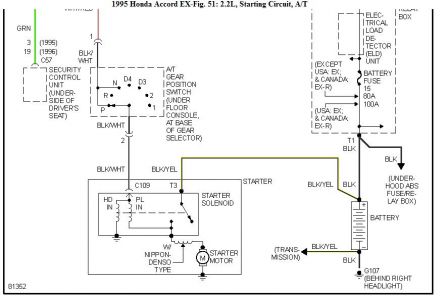

https://www.2carpros.com/forum/automotive_pictures/192750_StartCircuit95AccordAT02_1.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+3
Sunday, April 19th, 2009 AT 10:02 AM
Tiny
ACCORDRESEARCH
  • MEMBER
  • 1 POST
Hi! Can anyone please give me a copy of mitsuba main relay assembly RZ-0088 wiring diagram? It's the one used for Honda Accord 1997 model. Thank!
Was this
answer
helpful?
Yes
No
+5
Saturday, July 7th, 2012 AT 6:06 AM
Tiny
JERSON
  • MEMBER
  • 1 POST

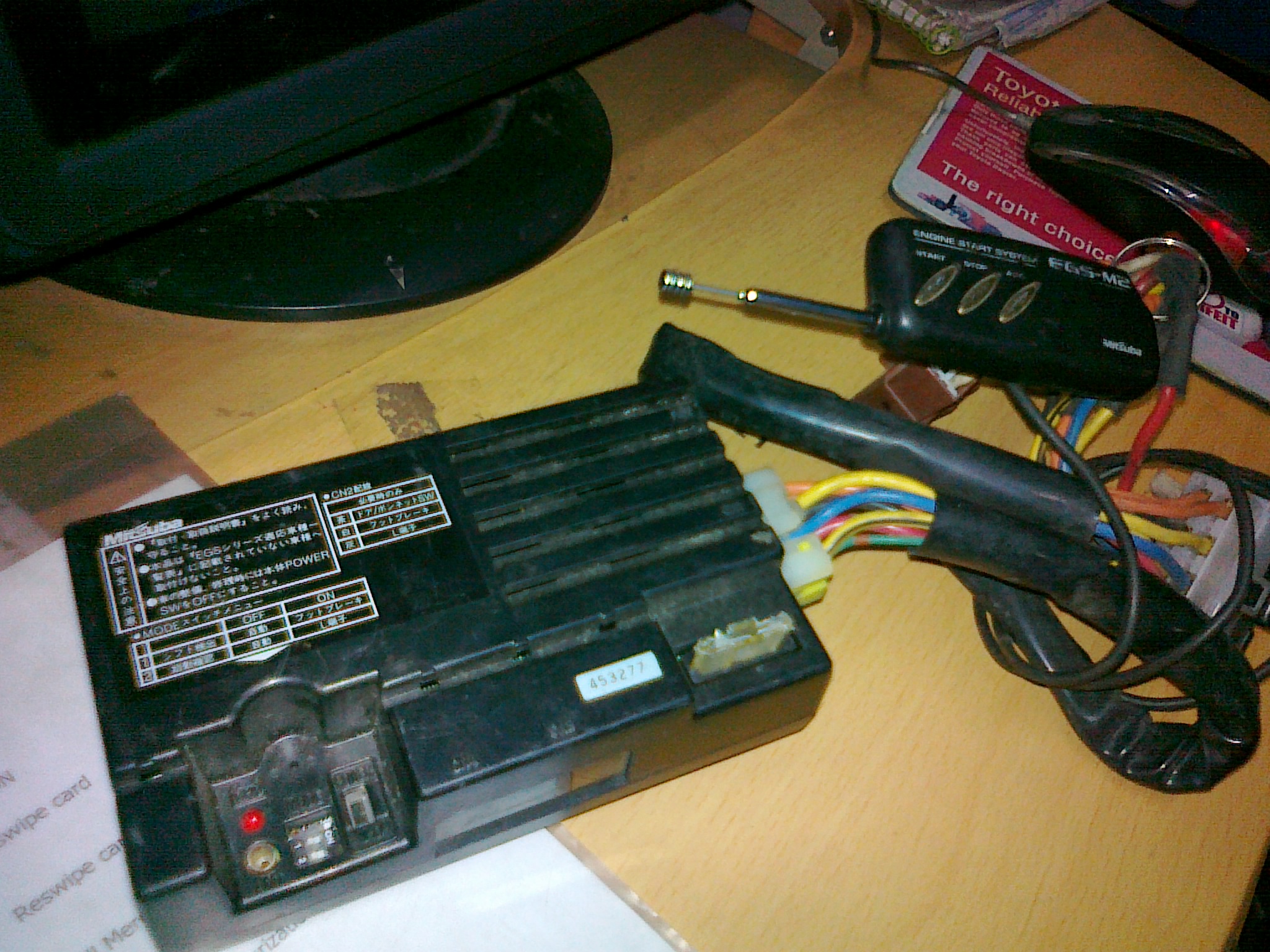

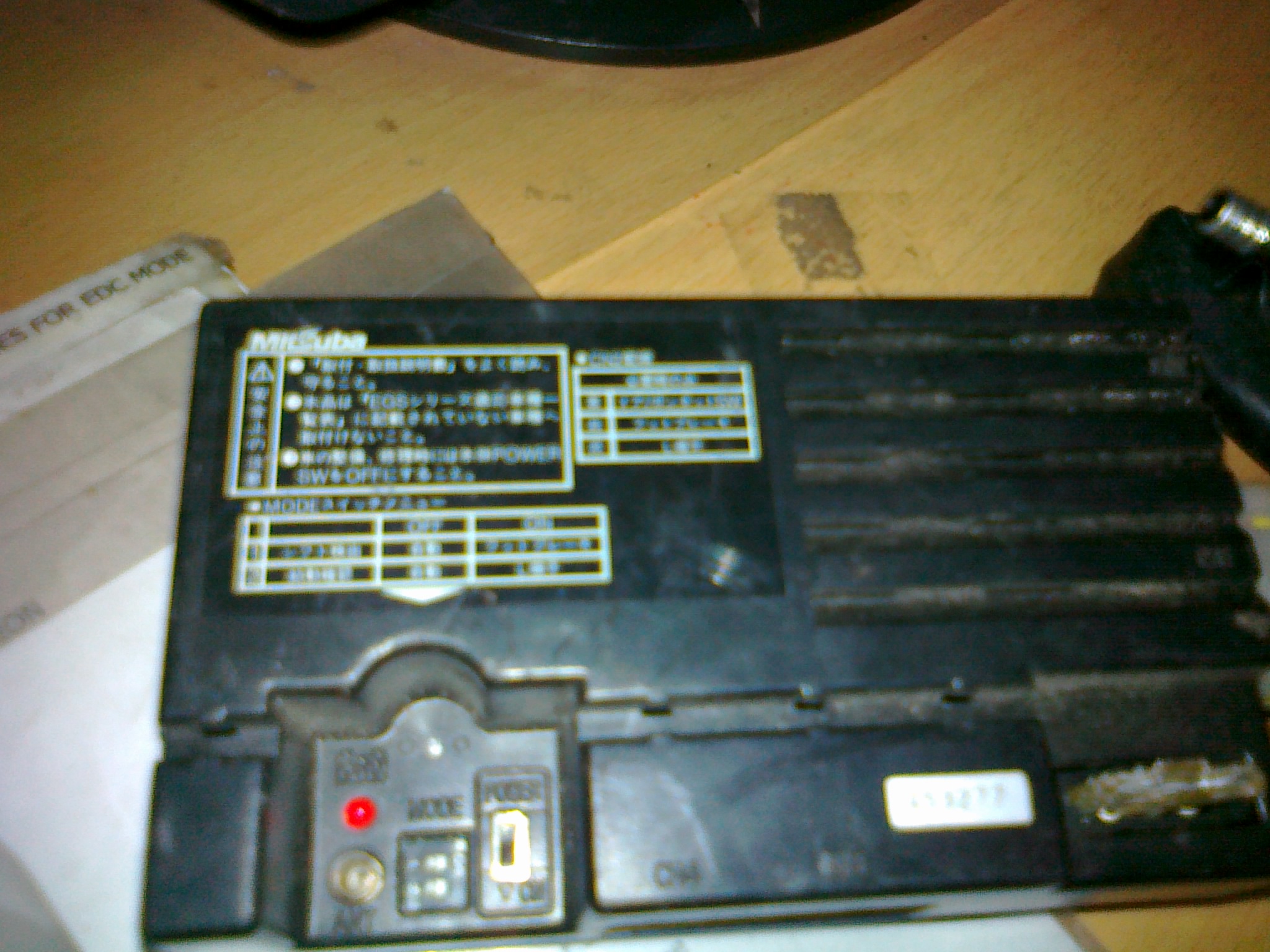

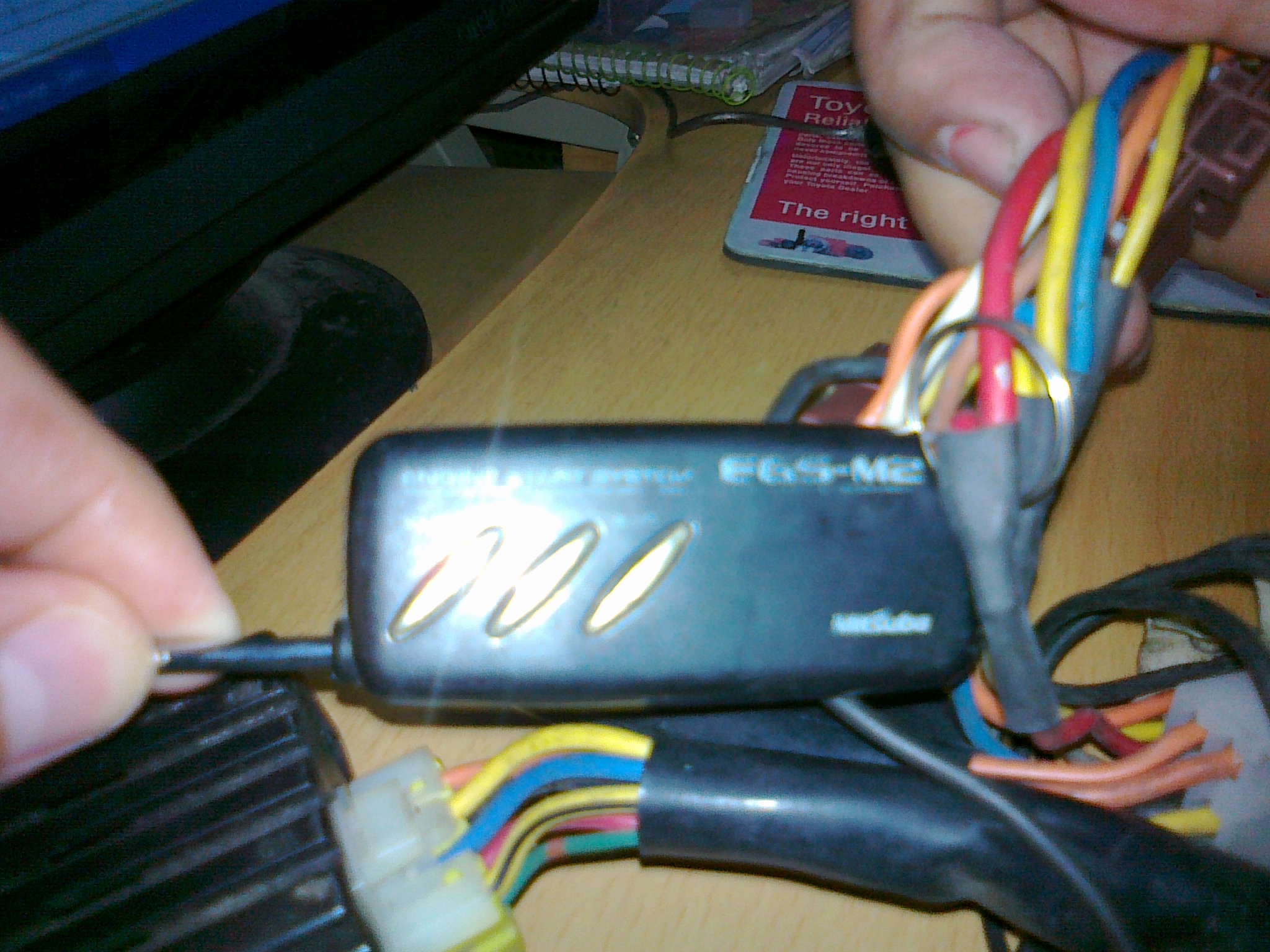

Hi, im jerson, please can I have a wiring diagram of MITSUBA ENGINE START SYTEM EGS-M2, for my honda fitt. Kindly see the attached file of the unit.
